Product application:

● Urban rail transit facilities                                      ● Rail transit electrical control system

● Electrical control unit of terminal product              ● Electrical system of traffic signal lamp

● High speed gantry toll control system                   ● Expressway speed measuring equipment system

● Metro power supply electrical control system       ● High speed railway electrical control power supply system

Product features:

● Remote signal: normal closed / failure indication

● Protection mode: overheating and overcurrent instantaneous technology

● Installation method: onboard terminal or standard 35mm rail

● Output mode: terminal block or on-board pin

● Secondary potting, module dust-proof, waterproof, fire-proof and explosion-proof.

● Ultra small leakage current (almost close to zero current loss)

● The whole series of products comply with RoHS and REACH specifications

● Design basis: IEC61643, UL1449, CQC, etc

General technical parameters of products：

◆Protection Class：IP67

◆Respone Time：<25nS

◆Leakage Current：<1uA

◆Operating Temperature：-40-+85℃

◆Storage Temperature：-40-+125℃

Product Parameters：

★ note: the product output end is equipped with remote signaling port and intelligent continuous power switching function.

    Please confirm the corresponding function module with the business personnel when ordering.

★ standard products have fixed outlet length. Please consult the business department for customization.

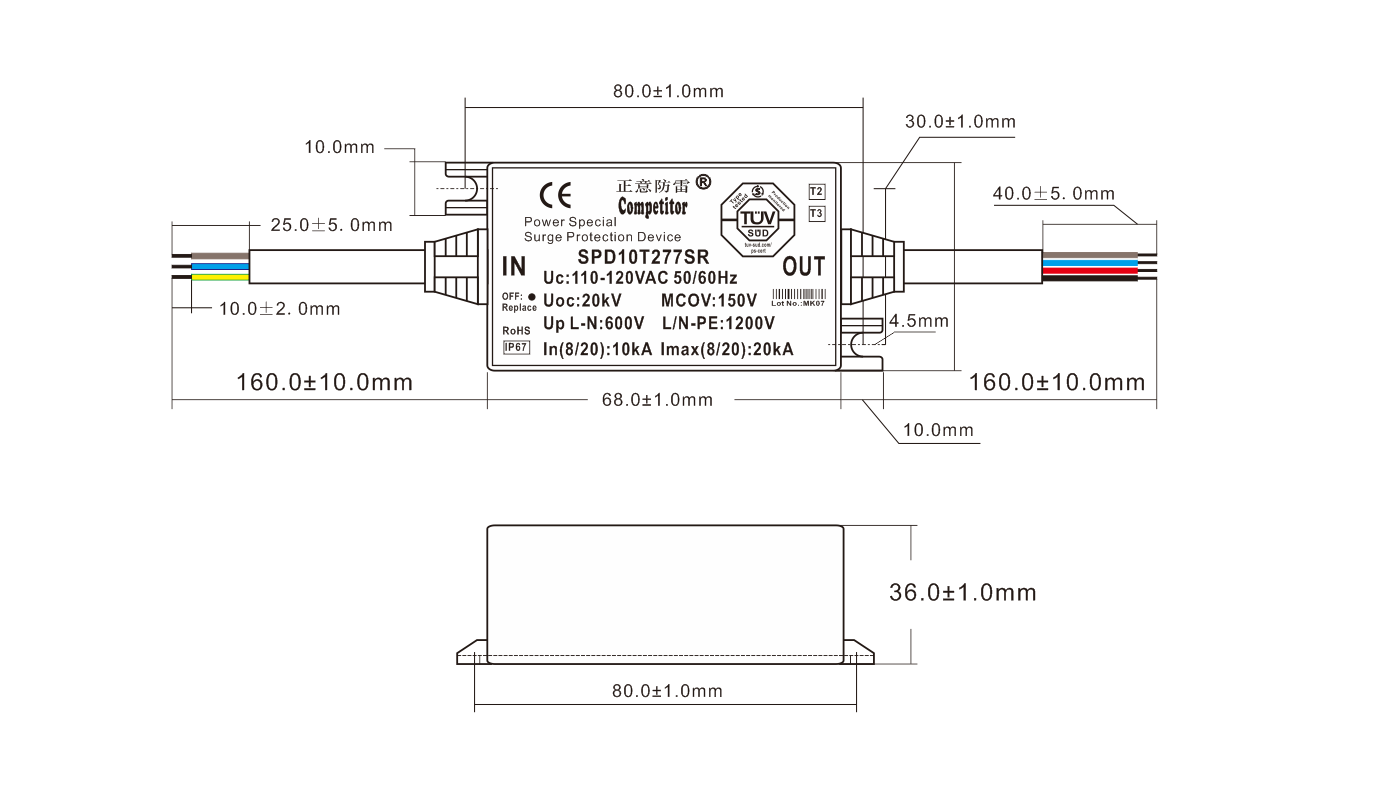

Product Dimension Program:
