DescriptionParameterDimensions

Product application:

● Commercial lighting street lamps                              ● Educational lighting lamps

● Subgrade lighting lamps                                            ● Landscape lighting

● Industrial and mining lamp high pole lamp                ● Advertising lamp wall washing lamp

● Underwater lights, landscape lights                           ● Stadium lights

● Highway lighting                                                        ● High power LED lamp


Product features:

★ IEC61643-11/EN61643-11

★ Optional with failure indicator

★ TUV and CE certification passed

★ Strip rubber shell certified products

★ Comply with RoHS and REACH product specifications

★ Over temperature and over current technology shall be applied

★ Design is based on UL14494th standard certification specification

★ Design is based on China CQC product standard certification specification


General technical parameters of the product:

◆Protection Grade:IP67

◆Response Time:<25nS

◆Leakage Current:<35uA

◆Operating Temperature:-40-+85℃

◆Storage Temperature:-40-+125℃


Product Parameters

SPD10277PW3511            F371830            F372030             F402030
Uc                                                 277VAC 50/60Hz
MCOV                                                 320VAC
Uoc                                                 10kV/20kV
In                                                 5kA/10kA
Imax                                                 10kA/20kA
Certification                                   TUV/CE(IEC61643-11/EN61643-11)
Standard Package                                   20pcs/box,400pcs/carton

The 10kV / 20kV specifications of this product have passed TUV / CE certification

This series is small volume certified products. If you have any questions, please consult the business department

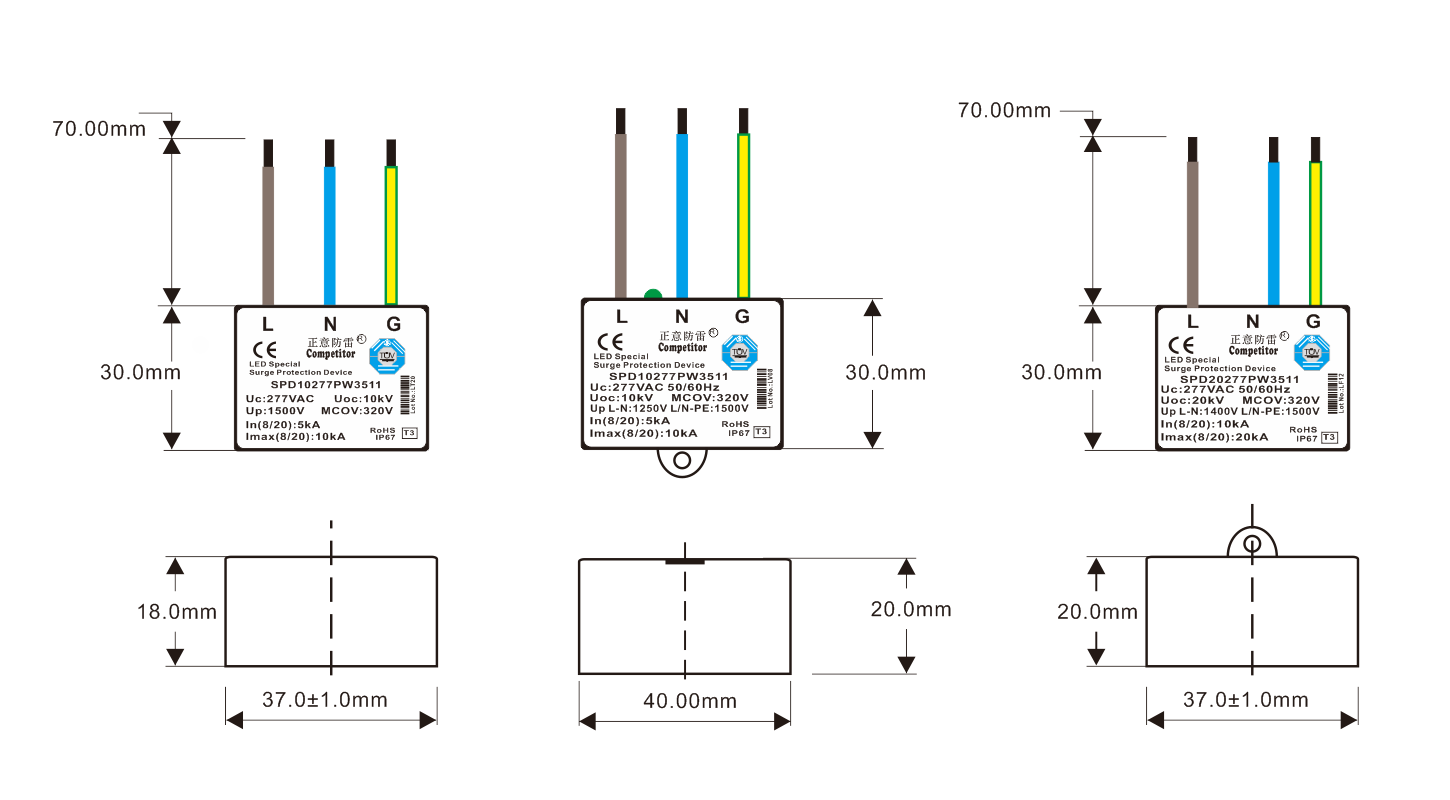

Product Dimension Program:
